Packaged units

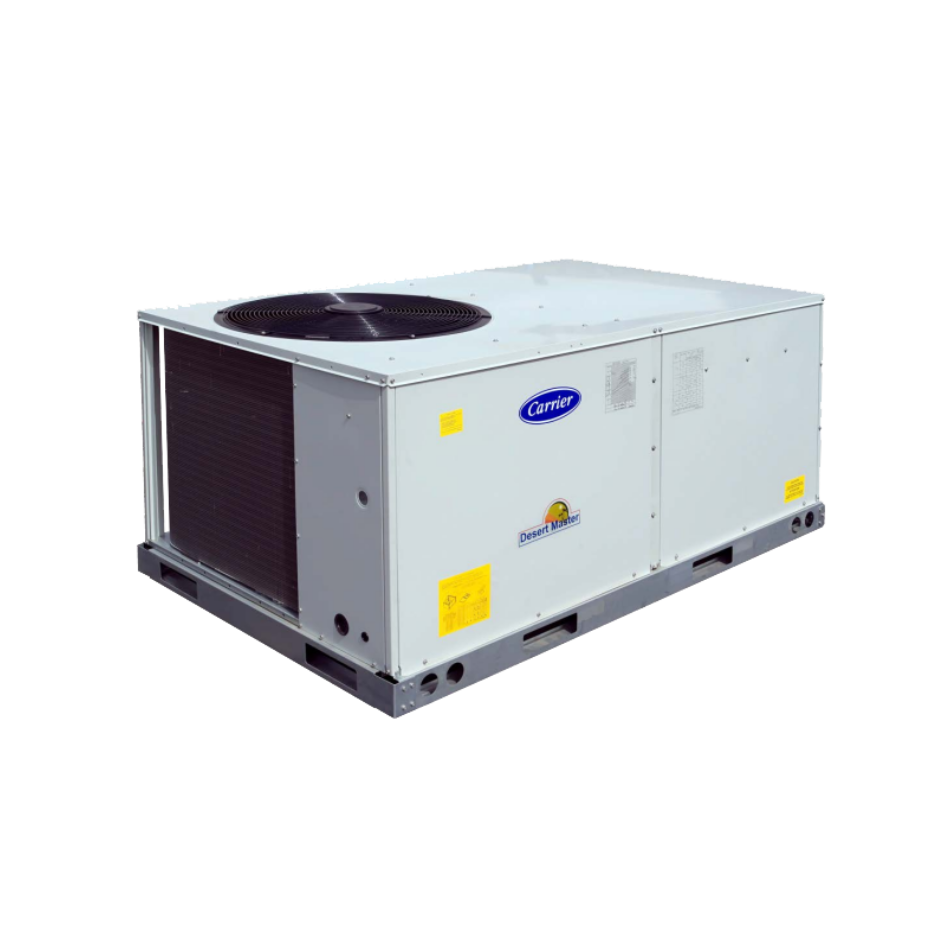

Package Unit (TCM) 6 to 11 TON

The 50TCM units are single side discharge rooftop cooling units utilizing electric heat as an option. Units are prewired, and pre-charged with R-410A refrigerant, and tested at the factory. These units can be placed on the side of a building or on a roof without roof curbs. Each unit is designed to occupy a minimal space, with piping and drain connections readily accessible. Carrier’s Package Rooftop Unit software makes selecting and optimizing the 50TCM easy.

Environment friendly refrigerant, R410A , Chlorine free HFC, ZERO ODP
ASHRAE 90.1 compliant
EER’s up to 12.50
TXV refrigerant metering device
Independent refrigerant circuits, each with a scroll compressor
Low outdoor temperature cooling operation down to 40°F
Cooling operating range up to 125 °F (51.6°C)
Liquid filter drier standard on each circuit
Fresh air intake capability
Non-corrosive sloped condensate drain pan in accordance to ASHRAE 62 standard
Thermally protected and permanently lubricated condenser and evaporator fan motors
Angle type return air section with washable type filters
Accessory Electric Heaters are available in a variety of sizes for the 50ZPM. These heaters are comprised of a separate heater module mounted on the blower inlet and remote mounted controls located in the unit control box. Single point electrical connections are available for powering both the heater and the unit.
